Firebird Parking/Signal Light
1967

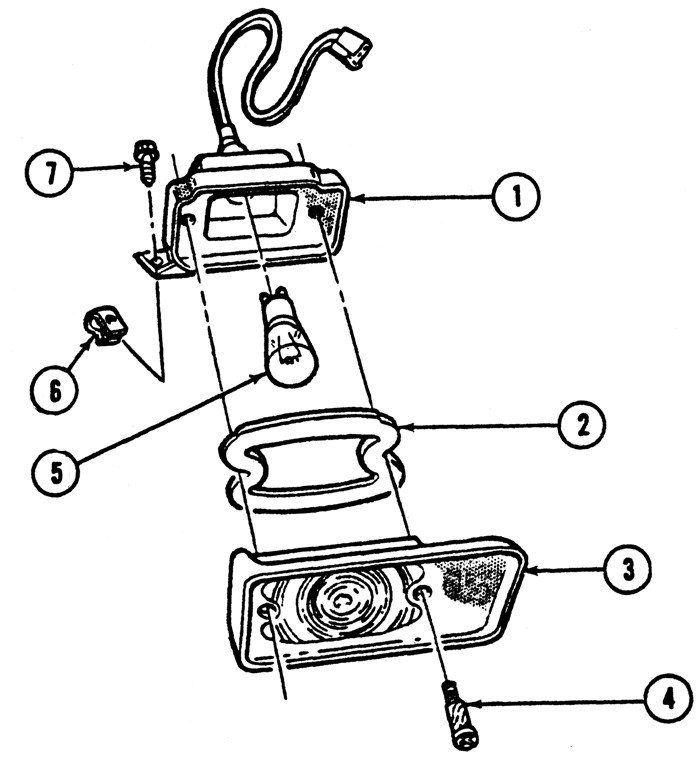

Illustrated Parts Break Down
1) Housing, Parking /signal lamp
2) Gasket, Parking lamp lens
3) Lens, Parking lamp
4) Screw, Parking lamp lens
5) Bulb, Parking lamp (No. 1157A)
|
|||
|
|
||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
Firebird Parking/Signal Light1967 |
|||
Illustrated Parts Break Down |
|||
1) Housing, Parking /signal lamp 2) Gasket, Parking lamp lens 3) Lens, Parking lamp |
4) Screw, Parking lamp lens 5) Bulb, Parking lamp (No. 1157A) |
6) Nut, Parking lamp to valance (#10-16 U-Shape) | 7) Screw, Parking lamp to valance (#10-16 x 1/2" Hex ) |
|
|||
The exploded view illustrates individual part placement in the assembly. |
|||
