Firebird 3 spd. Column Shift

1967-69



Illustrated Parts Break Down

1) Rod, Gearshift Control - upper - 2nd &. 3rd

2) Grommet, Control rod to gearshift levers

3) Brushing, Control rod to gearshift levers

4) Washer, Control rod to gearshift levers

5) Retainer, Control rod to gearshift levers

6) Rod, Gearshift Control - 1st & reverse

7) Lever, Control rod idler

8) Brushing, Control rod idler lever to support

9) Lock, Control rod idler lever

10) Pin, Gearshift lever pivot

11) Lever, Gearshift control

12) Knob, Gearshift control lever

13) Nut, Control rod swivel to lever (3/8"-16)

14) Lockwasher, Control rod swivel to lever (3/8")

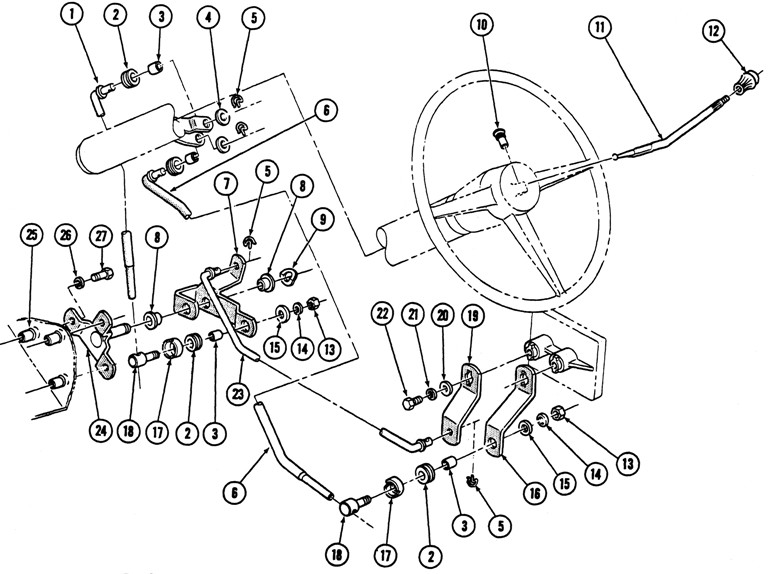

1967-69 Firebird 3 spd. Column Shift Exploded View

15) Washer, Control rod swivel to lever

16) Lever, Transmission shifter - 1st & reverse

17) Clamp, Control rod

18) Swivel, Control rod

19) Lever, Transmission shifter - 2nd & 3rd

20) Washer, Transmission shift lever to trans. (13/32" I.D. x 3/4" O.D.)

21) Lockwasher, Transmission shift lever to trans. (3/8")

22) Bolt, Transmission shift lever to trans. (3/8"-16 x 7/8")

23) Rod, Gearshift control - lower - 2nd & 3rd

24) Support assy., Transmission control rod idler lever

25) Nut, Control rod idler lever supt. to frame

26) Lockwasher, Control rod idler lever supt. to frame (5/16")

27) Bolt, Control rod idler lever supt. to frame (5/16"-18 x 1")



The exploded view illustrates individual part placement in the assembly.
